Console Connection

Before installation, make sure all devices and computers

to be connected to the StarView switch have been

turned off.

Plug a monitor to the Console’s VGA port; plug a USB

keyboard and a USB mouse to any two of the Console’s

USB ports as shown in figure 2.

For SV431USB only: As an option, the Master

StarView is either SV431 or SV431D to be linked to

the SV431USB with a mini-DIN8 male-to-male cable.

The SV431USB can operate as USB-peripheral

sharing devices

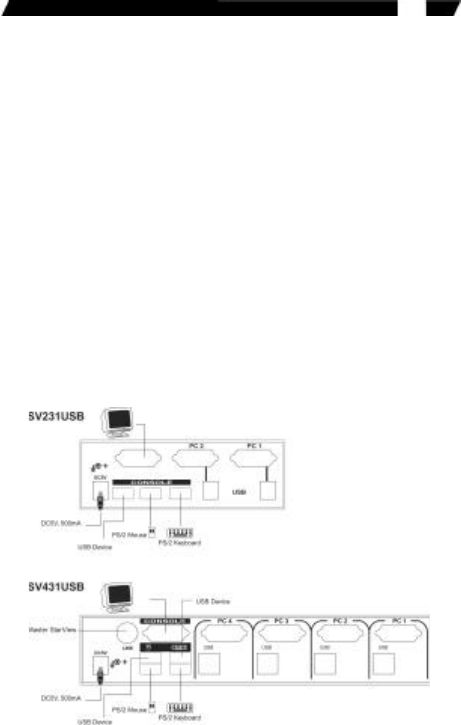

Figure 2: Console Connection
